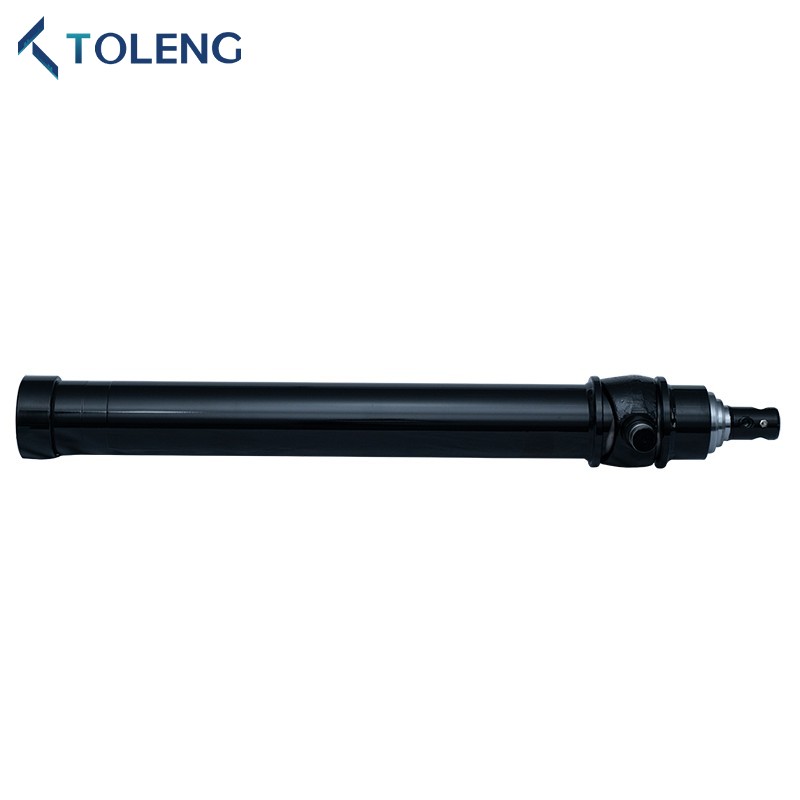

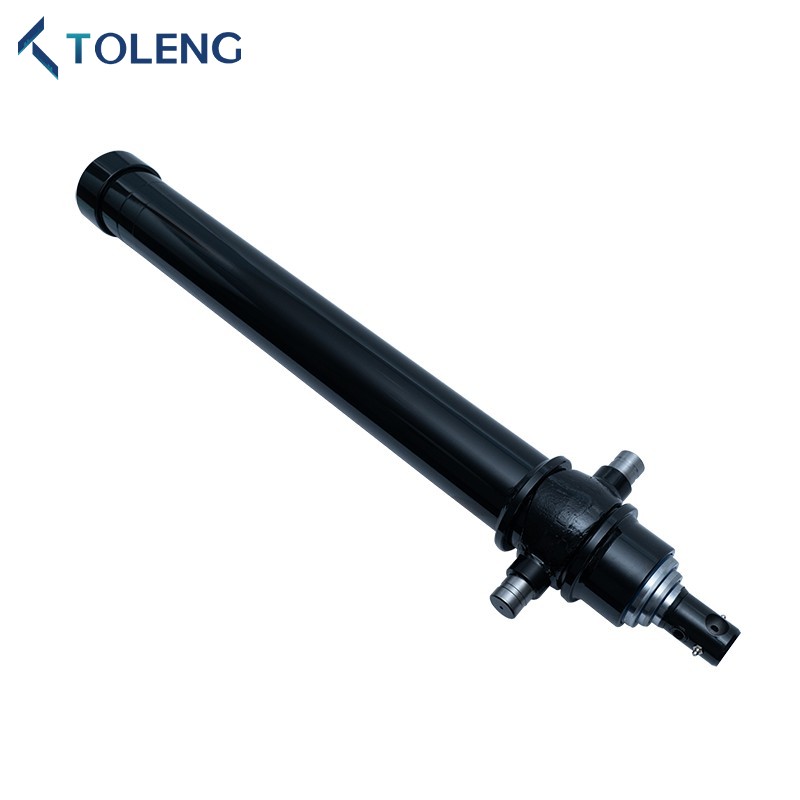

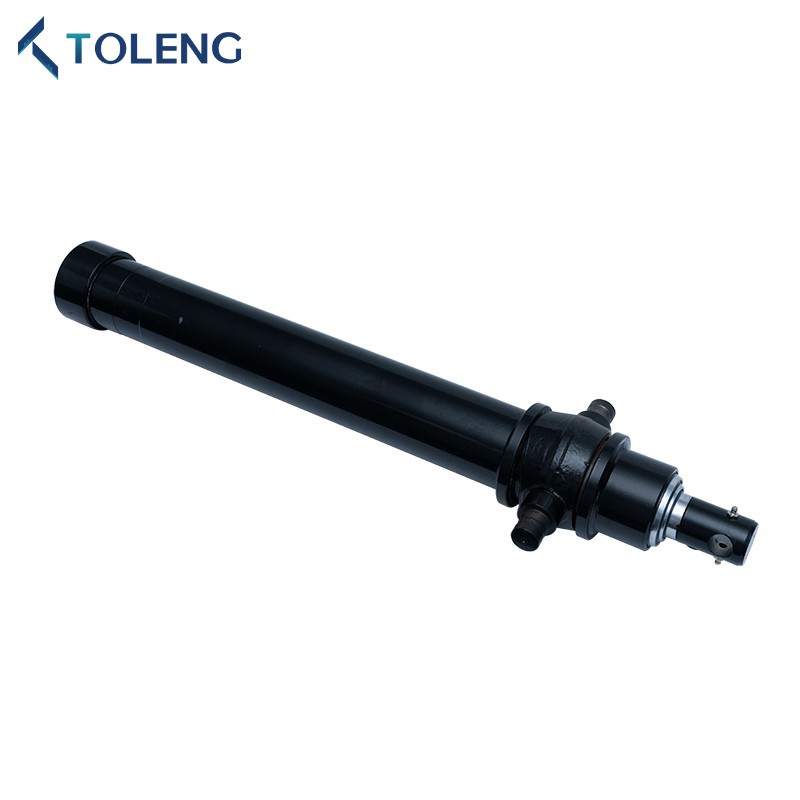

Telescopic Hydraulic Cylinder For Trailer
The following is telescopic hydraulic cylinder for trailer. Toleng is a leading manufacturer and supplier in China, specialize in the production and development of various hydraulic cylinders. Our products have been well sold to many countries, such as America, Australia, Italy, South Africa, etc. All of our products comply with the international standard (ISO9001) and can be customized according to specific requirements.
Send Inquiry
Product Description
This telescopic hydraulic cylinder for trailers is compatible with multiple models, making it ideal for a wide range of lifting applications. We take great care in crafting each cylinder to meet strict industry standards, ensuring reliable performance.
The telescopic hydraulic cylinder for trailers can be customized to meet individual customer requirements. It widely used where high thrust is required but space is limited, offering powerful performance in compact areas.
The telescopic hydraulic cylinder for trailers can be customized to meet individual customer requirements. It widely used where high thrust is required but space is limited, offering powerful performance in compact areas.
Telescopic Hydraulic Cylinder For Trailer Application
Telescopic Lift Cylinder
Telescopic Hydraulic Cylinder For Trailer Parameter
| TELESCOPIC CYLINDER | |||||||||||||
| PART No. | STROKE | A | B | C | D | E | F | G | H | L | PORT |
WEIGHT [Lbs] |
VOLUME [Gal.] |
| 7 TONS INVERSE | |||||||||||||
| WT07078 | 78" | 35.5" | 3.75" | 2" | 1.063" | 3.0" | 1.25" | 6.5" | 1.25" | 7" |
SAE #8 (3/4-16UNF) |
68 | 1.6 |
| WT07090 | 90" | 39.5" | 3.75" | 2" | 1.063" | 3.0" | 1.25" | 6.5" | 1.25" | 7" | 75 | 1.8 | |
| WT07108 | 108" | 45" | 3.75" | 2" | 1.063" | 3.0" | 1.25" | 6.5" | 1.25" | 7" | 101 | 2.2 | |
| 12 TONS INVERSE | |||||||||||||
| WT12078 | 78" | 34.75" | 4.4" | 2" | 1.063" | 3.0" | 1.5" | 7.5" | 1.5" | 7" |
SAE #8 (3/4-16UNF) |
106 | 2.5 |
| WT12090 | 90" | 38.7" | 4.4" | 2" | 1.063" | 3.0" | 1.5" | 7.5" | 1.5" | 7" | 107 | 2.8 | |
| WT12108 | 108" | 44.75" | 4.4" | 2" | 1.063" | 3.0" | 1.5" | 7.5" | 1.5" | 7" | 132 | 3.4 | |
| WT12120 | 120" | 48.75" | 4.4" | 2" | 1.063" | 3.0" | 1.5" | 7.5" | 1.5" | 7" | 143 | 3.8 | |
| WT12144 | 144" | 56.78" | 4.4" | 2" | 1.063" | 2.25" | 1.5" | 7.5" | 1.5" | 7" | 166 | 4.6 | |
Telescopic Hydraulic Cylinder For Trailer Details
