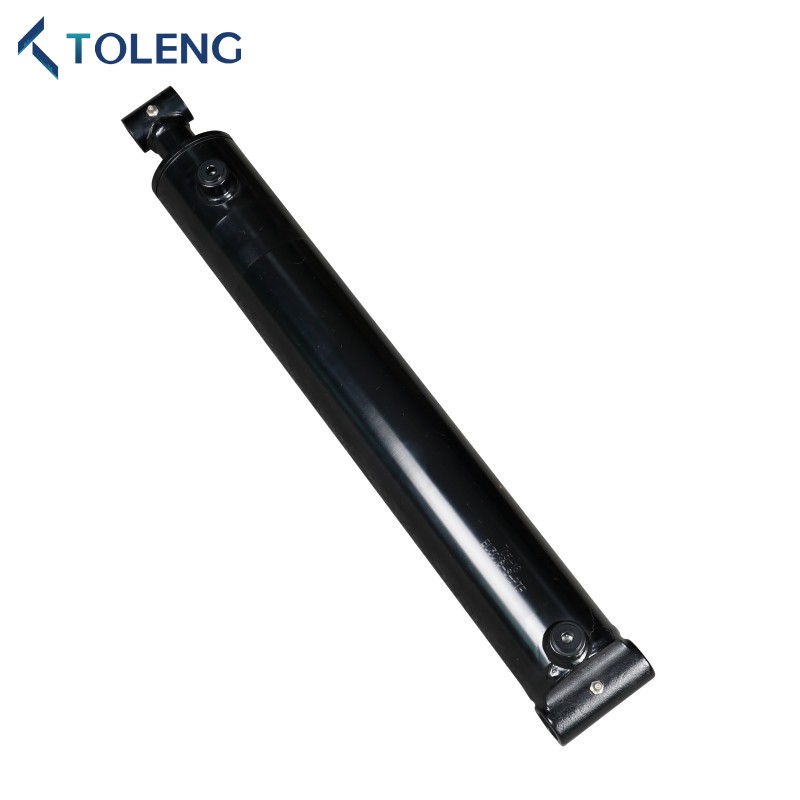

Standard WBU Series Welded Hydraulic Cylinder
TOLENG is a Chinese based manufacturer of hydraulic cylinders. Serving North America, Europe and many other countries around the world, we offer high quality Standard WBU Series Welded Hydraulic Cylinders at very affordable pricing. They are designed to deliver long and efficient service with low maintenance requirements, guaranteeing high productivity throughout the lifespan of the product.
Send Inquiry
Product Description
TOLENG Standard WBU Series Welded Hydraulic Cylinder is largely used in various demanding industrial applications such as agriculture machinery, construction machinery, vehicles, marine machinery, etc. They have a large market share in North America and are highly demanded.
Robust and dependable, each WBU cylinder is subjected to rigorous testing that exceeds industry standards, delivering maximum performance. Their compact and rugged design makes them ideal for withstanding harsh operating conditions and environment. Plus, they are simple to install and demonstrate high performance, with great advantages in price and delivery time.
Robust and dependable, each WBU cylinder is subjected to rigorous testing that exceeds industry standards, delivering maximum performance. Their compact and rugged design makes them ideal for withstanding harsh operating conditions and environment. Plus, they are simple to install and demonstrate high performance, with great advantages in price and delivery time.
Standard WBU Series Welded Hydraulic Cylinder Technical Parameters
1.Working Pressure: 3000 psi
2.Rod: Steel, induction hardened and chrome plated
3.Piston: Ductile Iron, for increased durability
4.Tube: Steel, honed and precision finished
5.Gland: Threaded
6.Pin: Steel, zinc plated
7.Seals: HALLITE, ASTON, NOK, DZ, etc. Top Quality. Customizable.
8.Paint: Black, Green, Red, Yellow, etc. Custom colors are available.
2.Rod: Steel, induction hardened and chrome plated
3.Piston: Ductile Iron, for increased durability
4.Tube: Steel, honed and precision finished
5.Gland: Threaded
6.Pin: Steel, zinc plated
7.Seals: HALLITE, ASTON, NOK, DZ, etc. Top Quality. Customizable.
8.Paint: Black, Green, Red, Yellow, etc. Custom colors are available.
Parameters
|
PART NUMBER |
INSIDER DIAMETER |
OUTSIDER DIAMETER |
A | B | C | D | E | F | G | H |
ROD DIAMETER |
PORT |
| TWBU15- | 1.50" | 2.00" | 8.00" | 1.25" | 0.76" | 2.62" | 2.25" | 2.00" | 1.06" | 1.87" | 1.00" | 1/4NPT |
| TWBU20- | 2.00" | 2.50" | 8.00" | 1.50" | 1.01" | 2.25" | 2.75" | 2.25" | 1.00" | 2.06" | 1.25" | 3/8NPT |
| TWBU25- | 2.50" | 3.00" | 8.00" | 1.50" | 1.07" | 2.25" | 3.25" | 2.25" | 0.81" | 2.18" | 1.50" | 1/2NPT |
| TWBU30- | 3.00" | 3.50" | 8.00" | 1.50" | 1.07" | 2.25" | 3.75" | 2.25" | 0.81" | 2.18" | 1.50" | 1/2NPT |
| TWBU35- | 3.50" | 4.00" | 10.00" | 2.00" | 1.26" | 4.00" | 4.25" | 2.25" | 0.81" | 2.18" | 1.75" | 1/2NPT |
| TWBU40- | 4.00" | 4.50" | 10.00" | 2.25" | 1.51" | 3.75" | 4.75" | 2.50" | 0.81" | 2.18" | 2.00" | 1/2NPT |
| TWBU50- | 5.00" | 5.50" | 10.00" | 3.00" | 1.76" | 3.20" | 5.75" | 3.25" | 1.25" | 2.75" | 2.50" | 1/2NPT |
| *FOR 5.00"BORE:2.00"PINS ARE AVAILABLE WITH REMOVABLE BUSHING | ||||||||||||
| *FOR 1.50"TO4.00"BORE SAE PORTS ARE AVAILABLE | ||||||||||||
| SEAL TEMPERATURE RANGE:-30℃/+100℃-22F/+212°F) | ||||||||||||
| SEAL MAXIMUM SPEED:3 FT/SEC | ||||||||||||
| MAXIMUM RETRACTED WORKING PRESSURE=3000 PSI | ||||||||||||
| WELDED BUSHING CYLINDER | |||||||
| PART NUMBER |
ROD DIAMETER |
BORE& STROKE |
DIMENSIONS | PORT SIZE |
PIN SIZE |
WEIGHT (LBS) |
|
| RETRACTED | EXTENDED | ||||||
| TWBU30-1504 | 1" | 1.5"x4" | 12" | 16" | 1/4NPT | 3/4" | 8 |
| TWBU30-1506 | 1.5"x6" | 14" | 20" | 9 | |||
| TWBU30-1508 | 1.5"x8" | 16" | 24" | 10 | |||
| TWBU30-1510 | 1.5"x10" | 18" | 28" | 11 | |||
| TWBU30-1512 | 1.5"x12" | 20" | 32" | 13 | |||
| TWBU30-1514 | 1.5"x14" | 22" | 36" | 14 | |||
| TWBU30-1516 | 1.5"x16" | 24" | 40" | 15 | |||
| TWBU30-1518 | 1.5"x18" | 26" | 44" | 16 | |||
| TWBU30-1520 | 1.5"x20" | 28" | 48" | 18 | |||
| TWBU30-1524 | 1.5"x24" | 32" | 56" | 20 | |||
| TWBU30-2004 | 1-1/4" | 2"x4" | 12" | 16" | 3/8NPT | 1" | 12 |
| TWBU30-2006 | 2"x6" | 14" | 20" | 13 | |||
| TWBU30-2008 | 2"x8" | 16" | 24" | 15 | |||
| TWBU30-2010 | 2"x10" | 18" | 28" | 17 | |||
| TWBU30-2012 | 2"x12" | 20" | 32" | 19 | |||
| TWBU30-2014 | 2"x14" | 22" | 36" | 20 | |||
| TWBU30-2016 | 2"x16" | 24" | 40" | 22 | |||
| TWBU30-2018 | 2"x18" | 26" | 44" | 24 | |||
| TWBU30-2020 | 2"x20" | 28" | 48" | 25 | |||
| TWBU30-2024 | 2"x24" | 32" | 56" | 29 | |||
| TWBU30-2028 | 2"x28" | 36" | 64" | 32 | |||
| TWBU30-2030 | 2"x30" | 38" | 68" | 34 | |||
| TWBU30-2032 | 2"x32" | 40" | 72" | 36 | |||
| TWBU30-2036 | 2"x36" | 44" | 80" | 39 | |||
| TWBU30-2040 | 2"x40" | 48" | 88" | 42 | |||
| TWBU30-2048 | 2"x48" | 56" | 104" | 49 | |||
| TWBU30-2504 | 1-1/2" | 2.5"x4" | 12" | 16" | 1/2NPT | 1" | 16 |
| TWBU30-2506 | 2.5"x6" | 14" | 20" | 18 | |||
| TWBU30-2508 | 2.5"x8" | 16" | 24" | 20 | |||
| TWBU30-2510 | 2.5"x10" | 18" | 28" | 22 | |||
| TWBU30-2512 | 2.5"x12" | 20" | 32" | 25 | |||
| TWBU30-2514 | 2.5"x14" | 22" | 36" | 27 | |||
| TWBU30-2516 | 2.5"x16" | 24" | 40" | 29 | |||
| TWBU30-2518 | 2.5"x18" | 26" | 44" | 31 | |||
| TWBU30-2520 | 2.5"x20" | 28" | 48" | 34 | |||
| TWBU30-2524 | 2.5"x24" | 32" | 56" | 38 | |||
| TWBU30-2528 | 2.5"x28" | 36" | 64" | 43 | |||
| TWBU30-2530 | 2.5"x30" | 38" | 68" | 45 | |||
| TWBU30-2532 | 2.5"x32" | 40" | 72" | 47 | |||
| TWBU30-2536 | 2.5"x36" | 44" | 80” | 51 | |||
| TWBU30-2540 | 2.5"x40" | 48" | 88" | 56 | |||
| TWBU30-2548 | 2.5"x48" | 56" | 104" | 65 | |||
| WELDED BUSHING CYLINDER | |||||||
| PART NUMBER |
ROD DIAMETER |
BORE& STROKE |
DIME | NSIONS | PORT SIZE |
PIN SIZE |
WEIGHT (LBS) |
| RETRACTED | EXTENDED | ||||||
| TWBU30-3004 | 1-1/2" | 3"x4" | 12" | 16" | 1/2NPT | 1" | 19 |
| TWBU30-3006 | 3"x6" | 14" | 20" | 22 | |||
| TWBU30-3008 | 3"x8" | 16" | 24" | 24 | |||
| TWBU30-3010 | 3"x10" | 18" | 28" | 27 | |||
| TWBU30-3012 | 3"x12" | 20" | 32" | 29 | |||
| TWBU30-3014 | 3"x14" | 22" | 36" | 32 | |||
| TWBU30-3016 | 3"x16" | 24" | 40” | 34 | |||
| TWBU30-3018 | 3"x18" | 26" | 44" | 36 | |||
| TWBU30-3020 | 3"x20" | 28" | 48" | 39 | |||
| TWBU30-3024 | 3"x24" | 32" | 56" | 44 | |||
| TWBU30-3028 | 3"x28" | 36" | 64" | 49 | |||
| TWBU30-3030 | 3"x30" | 38" | 68" | 51 | |||
| TWBU30-3032 | 3"x32" | 40” | 72" | 54 | |||
| TWBU30-3036 | 3"x36" | 44" | 80" | 59 | |||
| TWBU30-3040 | 3"x40" | 48" | 88" | 63 | |||
| TWBU30-3048 | 3"x48" | 56" | 104" | 73 | |||
| TWBU30-3504 | 1-3/4" | 3.5"x4" | 14" | 18" | 1/2NPT | 1-1/4" | 27 |
| TWBU30-3506 | 3.5"x6" | 16" | 22" | 30 | |||
| TWBU30-3508 | 3.5"x8" | 18" | 26" | 33 | |||
| TWBU30-3510 | 3.5"x10" | 20" | 30” | 36 | |||
| TWBU30-3512 | 3.5"x12" | 22" | 34" | 39 | |||
| TWBU30-3514 | 3.5"x14" | 24" | 38" | 42 | |||
| TWBU30-3516 | 3.5"x16" | 26" | 42" | 45 | |||
| TWBU30-3518 | 3.5"x18" | 28" | 46" | 48 | |||
| TWBU30-3520 | 3.5"x20" | 30" | 50" | 51 | |||
| TWBU30-3524 | 3.5"x24" | 34" | 58" | 57 | |||
| TWBU30-3528 | 3.5"x28" | 38" | 66" | 64 | |||
| TWBU30-3530 | 3.5"x30" | 40" | 70" | 67 | |||
| TWBU30-3532 | 3.5"x32" | 42" | 74" | 70 | |||
| TWBU30-3536 | 3.5"x36" | 46" | 82” | 76 | |||
| TWBU30-3540 | 3.5"x40" | 50" | 90" | 82 | |||
| TWBU30-3548 | 3.5"x48" | 58" | 106" | 94 | |||
| WELDED BUSHING CYLINDER | |||||||
| PART NUMBER |
ROD DIAMETER |
BORE& STROKE |
DIMENSIONS | PORT SIZE |
PIN SIZE |
WEIGHT (LBS) |
|
| RETRACTED | EXTENDED | ||||||
| TWBU30-4004 | 2" | 4"x4" | 14" | 18" | 1/2 NPT | 1-1/2" | 34 |
| TWBU30-4006 | 4"x6" | 16" | 22" | 38 | |||
| TWBU30-4008 | 4"x8" | 18" | 26" | 41 | |||
| TWBU30-4010 | 4"x10" | 20" | 30" | 45 | |||
| TWBU30-4012 | 4"x12" | 22" | 34" | 49 | |||
| TWBU30-4014 | 4"x14" | 24" | 38" | 52 | |||
| TWBU30-4016 | 4"x16" | 26" | 42" | 56 | |||
| TWBU30-4018 | 4"x18" | 28" | 46" | 60 | |||
| TWBU30-4020 | 4"x20" | 30" | 50" | 63 | |||
| TWBU30-4024 | 4"x24" | 34" | 58" | 71 | |||
| TWBU30-4028 | 4"x28" | 38" | 66" | 78 | |||
| TWBU30-4030 | 4"x30" | 40" | 70" | 82 | |||
| TWBU30-4032 | 4"x32" | 42" | 74" | 85 | |||
| TWBU30-4036 | 4"x36" | 46" | 82" | 93 | |||
| TWBU30-4040 | 4"x40" | 50" | 90" | 100 | |||
| TWBU30-4048 | 4"x48" | 58" | 106" | 115 | |||
| TWBU30-5004 | 2-1/2" | 5"x4" | 14" | 18" | 1/2 NPT | 1-3/4" | 65 |
| TWBU30-5006 | 5"x6" | 16" | 22" | 70 | |||
| TWBU30-5008 | 5"x8" | 18" | 26" | 75 | |||
| TWBU30-5010 | 5"x10" | 20" | 30" | 80 | |||
| TWBU30-5012 | 5"x12" | 22" | 34" | 85 | |||
| TWBU30-5014 | 5"x14" | 24" | 38" | 90 | |||
| TWBU30-5016 | 5"x16" | 26" | 42” | 96 | |||
| TWBU30-5018 | 5"x18" | 28" | 46” | 101 | |||
| TWBU30-5020 | 5"x20" | 30" | 50" | 106 | |||
| TWBU30-5024 | 5"x24" | 34" | 58" | 116 | |||
| TWBU30-5028 | 5"x28" | 38" | 66" | 126 | |||
| TWBU30-5030 | 5"x30" | 40" | 70" | 131 | |||
| TWBU30-5032 | 5"x32" | 42” | 74" | 137 | |||
| TWBU30-5036 | 5"x36" | 46" | 82" | 147 | |||
| TWBU30-5040 | 5"x40" | 50" | 90" | 157 | |||
| TWBU30-5048 | 5"x48" | 58" | 106" | 178 | |||
