Hydraulic Stabiliser Legs Cylinder

Choosing the right hydraulic stabiliser legs cylinder is crucial for ensuring that equipment is safely and stably fixed in place. TOLENG has over 20 years of experience in the production and sale of high-quality hydraulic stabiliser legs cylinder in China. We are committed to providing customers with outstanding performance, safe and reliable hydraulic stabiliser legs cylinder solutions. TOLENG's hydraulic stabiliser legs cylinder are made of high-quality materials to ensure the strength of the hydraulic stabiliser legs cylinder and enable them to operate normally in different environments without corrosion. All our products comply with international standards (ISO9001 and ISO14001) and can be customized according to specific requirements.

Send Inquiry

Product Description

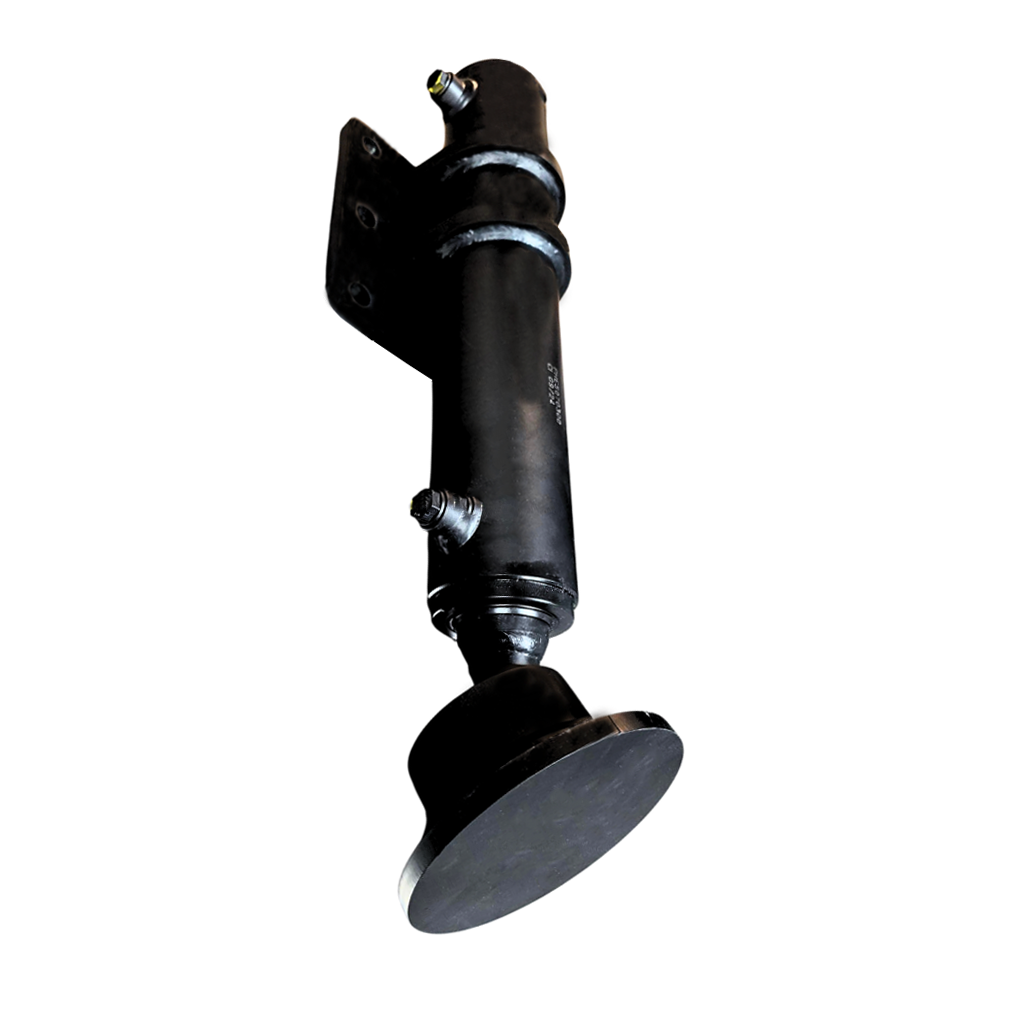

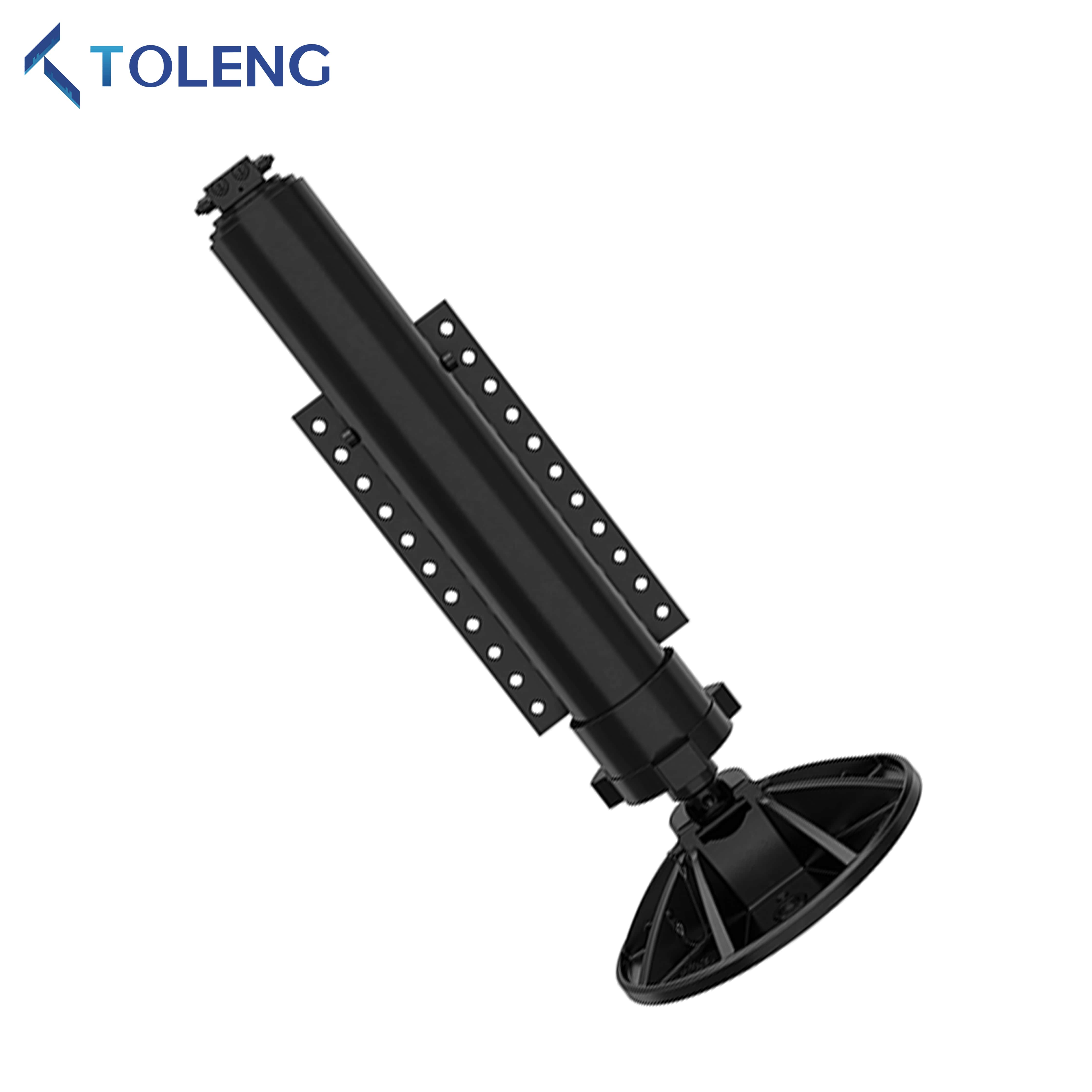

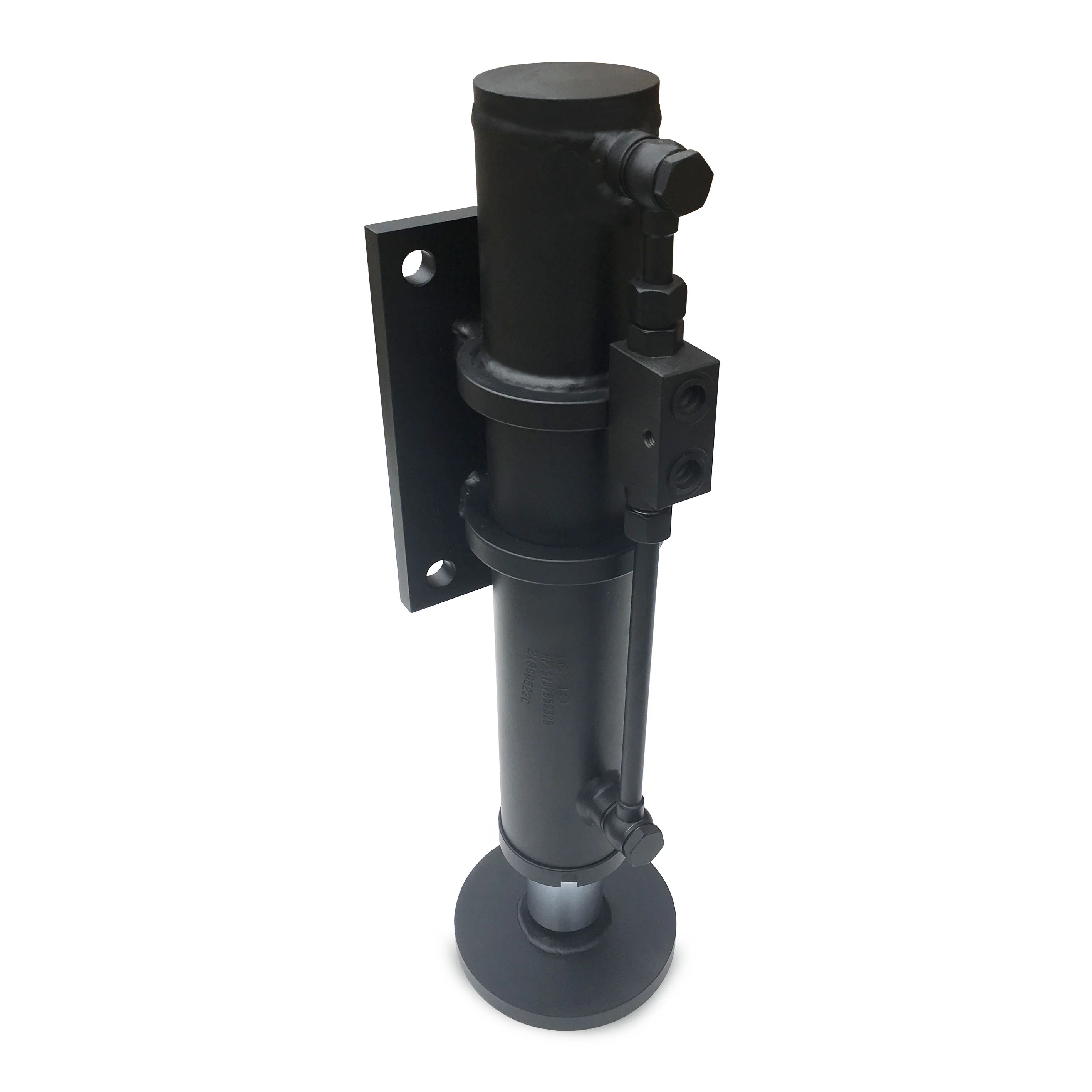

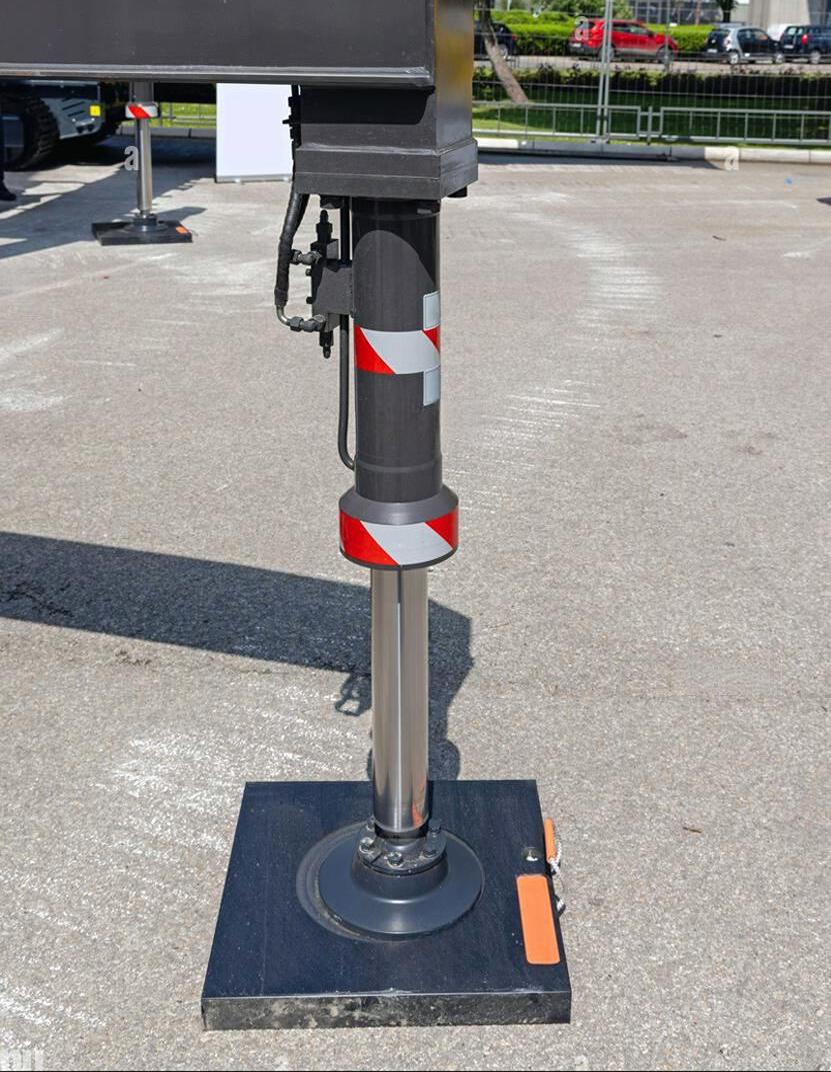

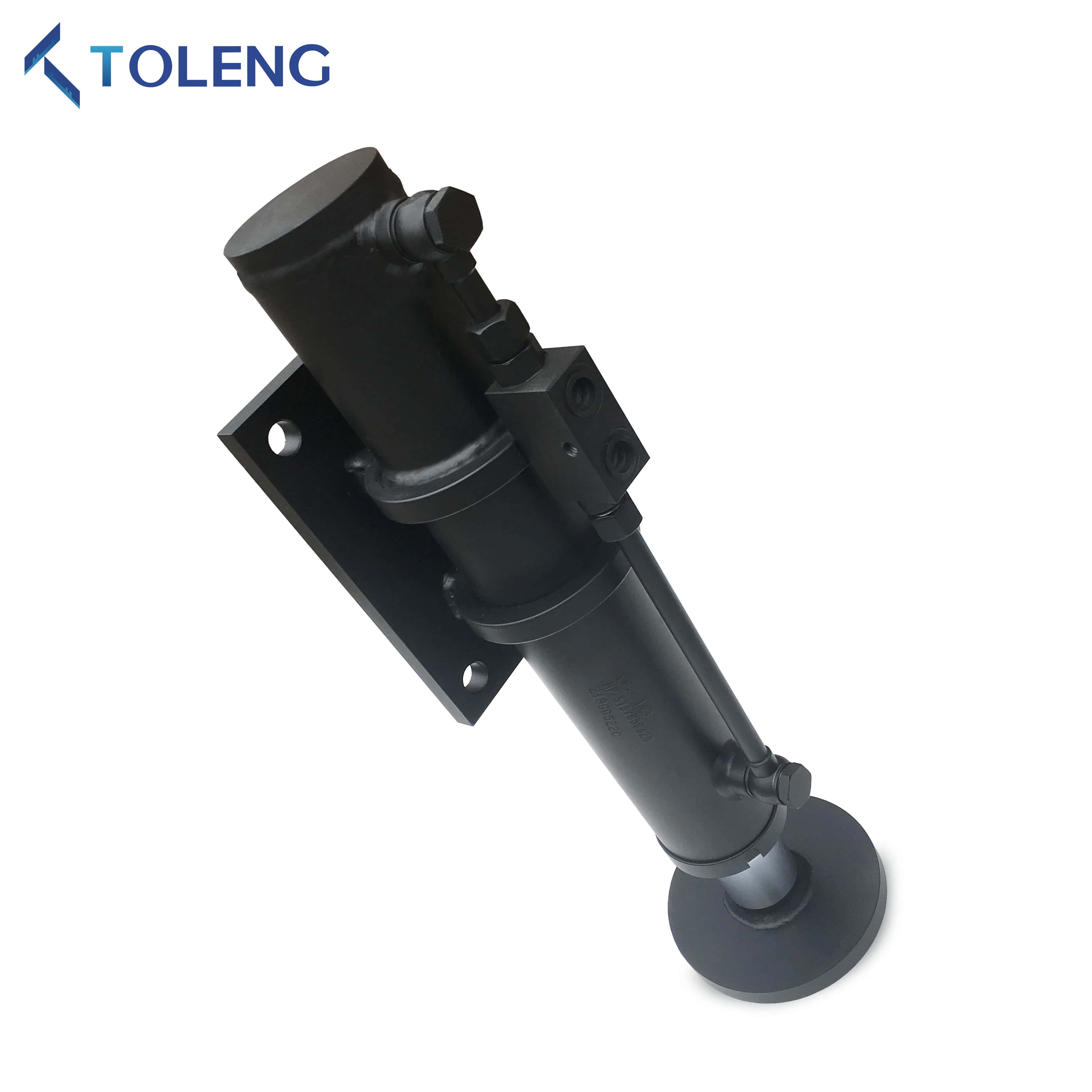

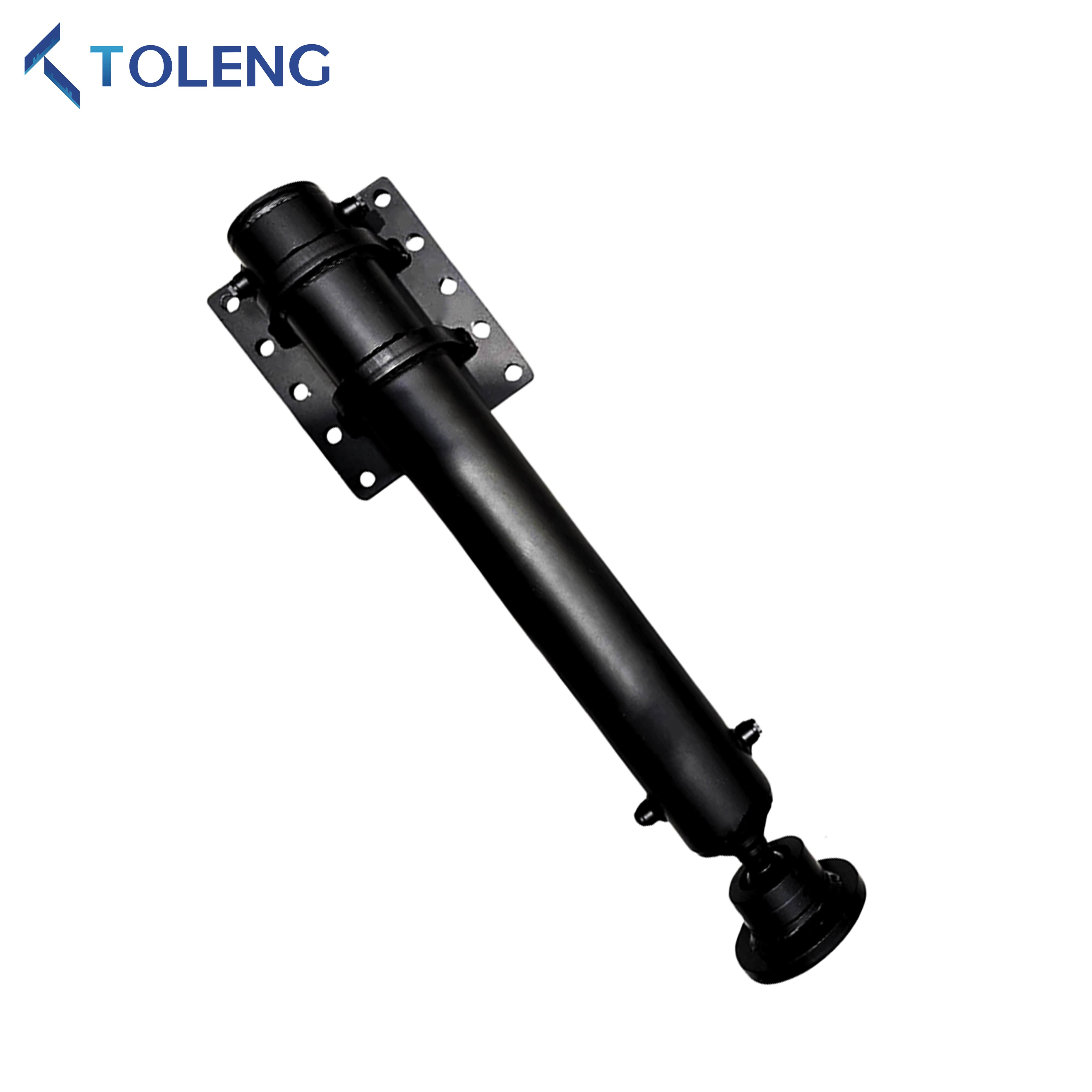

Hydraulic stabiliser legs cylinder are a type of hydraulic cylinder that can mechanically lock the cylinder at the desired extension length, providing a safe and reliable stabilization solution for mobile vehicles and machinery. Hydraulic stabiliser legs cylinder are typically used to stabilize on-road and off-road equipment, such as work trucks, fire rescue vehicles, medium-duty trucks and trailers, and operating machinery. TOLENG strictly selects high-quality alloy steel as the main material and uses precision forging processes and advanced heat treatment technologies to ensure that each hydraulic stabiliser legs cylinder has excellent structural strength and fatigue resistance. The high-quality manufacturing enables the hydraulic stabiliser legs cylinder to reliably hold the equipment in place throughout the project, even after long-term use. We have a unique tube-in-tube design, which isolates the rod and seals from dust or debris, thereby extending the service life of the hydraulic stabiliser legs cylinder. The adjustable mounting plates allow the rotating feet to lift on uneven terrain. Currently, our hydraulic stabiliser legs cylinder series is widely used in various fields such as aerial work platforms, engineering cranes, concrete pump trucks, and drilling equipment. Whether you are operating alone or managing a large fleet, we can provide first-class hydraulic cylinders and fast delivery services. We will work with you to tailor solutions to meet your specific needs.

Technical Parameter

Bore diameter : 3in

Rod diameter: 2in

Stroke: 12in-15in

Working pressure: 3000PSI

Piston rod material: CK45

Bore material: CK45

Features And Application

Features:

-Cost-Effective

-Welded Design

-Low Maintenance

-Customization

-Mount: Trunnion

-Tube: Cold drawn precision tubing with micro-honed inside

-Rod: Micro-honed inside and chrome plated outside

-Paint: Black, white, yellow, etc. High quality and customizable paint for corrosion resistance.

Application：

-The hydraulic stabiliser legs cylinder is versatile and compatible with multiple models, such as lifting equipment, mobile rigs, etc, making it ideal for a wide range of applications.

Details
