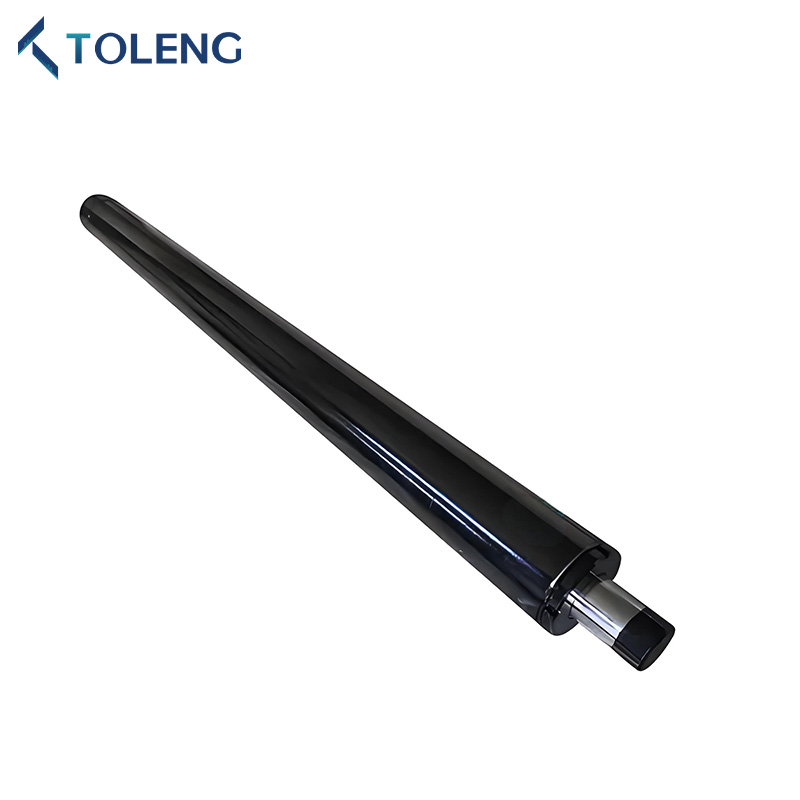

What is the working principle of Hydraulic Lifting Cylinders?

Hydraulic lift cylinders convert fluid power into precise mechanical force, enabling industrial companies to lift enormous loads with unparalleled control. At TOLENG, we leverage cutting-edge design and technology to provide you with highly reliable and safe hydraulic cylinders. Do you understand how hydraulic lift cylinders work?

Working Principle

Fluid Pressurization: A hydraulic pump pressurizes oil into the cylinder, creating a high-pressure zone.

Piston Actuation: Pressure pushes the piston, driving the piston rod outward to lift the load.

Controlled Retraction: Reversing fluid flow causes the piston rod to retract smoothly.

Key Specifications

Load Capacity: 5-1,000 tons

Stroke Length: 50 mm - 3,000 mm

Operating Pressure: Up to 700 bar

Speed Control: Precision flow valve, accuracy up to ±0.5 mm

Durability: ≥500,000 cycles

Distinguished Features

Hydraulic Lifting Cylinders feature a double-acting design with bidirectional force application

Corrosion-resistant coating

Integrated overload protection

IoT-enabled sensors for predictive maintenance

Applications

Construction: Tower crane jacks, bridge lifting systems

Automotive: Electric vehicle battery assembly lines, heavy-duty vehicle lifts

Logistics: Automated warehouse pallet lifts

Manufacturing: Presses, steel rolling mills

FAQ

Q: What is the basic physical principle behind Hydraulic Lifting Cylinders?

A: Pascal's principle: In a confined space, pressure applied to hydraulic fluid is evenly distributed. For example, a pressure of 10 bar acting on a 100 cm² piston generates a force of 1,000 kg.

Q: Why are TOLENG hydraulic cylinders more energy efficient than competitors?

A: Our proprietary pressure-compensated flow control technology reduces heat generation, resulting in a 30% reduction in energy consumption compared to the industry average. Combined with low-friction seals, this ensures smooth operation at a noise level of ≤55 dB.

Q: How do seals prevent leakage in high-pressure environments?

A: TOLENG utilizes triple-lip sealing technology: a reinforced PTFE layer creates a redundant barrier. Each seal undergoes over 5,000 pressure cycles during testing, ensuring it remains leak-free even at 700 bar—critical for aerospace and offshore applications.
