How to adjust the speed of a hydraulic cylinder?

The hydraulic cylinder is a very important mechanical component and is widely used in various mechanical equipment. However, for users of hydraulic cylinders, how to adjust their speed is a key issue that needs to be mastered. Below, we will share some knowledge about the speed adjustment of hydraulic cylinders.

The speed regulation of hydraulic cylinders, that is, the adjustment of fast and slow, is a complex process involving mechanical dynamics and hydraulic control technology. To precisely control the movement speed of the hydraulic cylinder, it is first necessary to have a deep understanding of the basic principles of the hydraulic system. The speed of the hydraulic cylinder mainly by regulating the oil flow rate and the area of the hydraulic cylinder to control adjustment.

1.Adjust the flow rate.

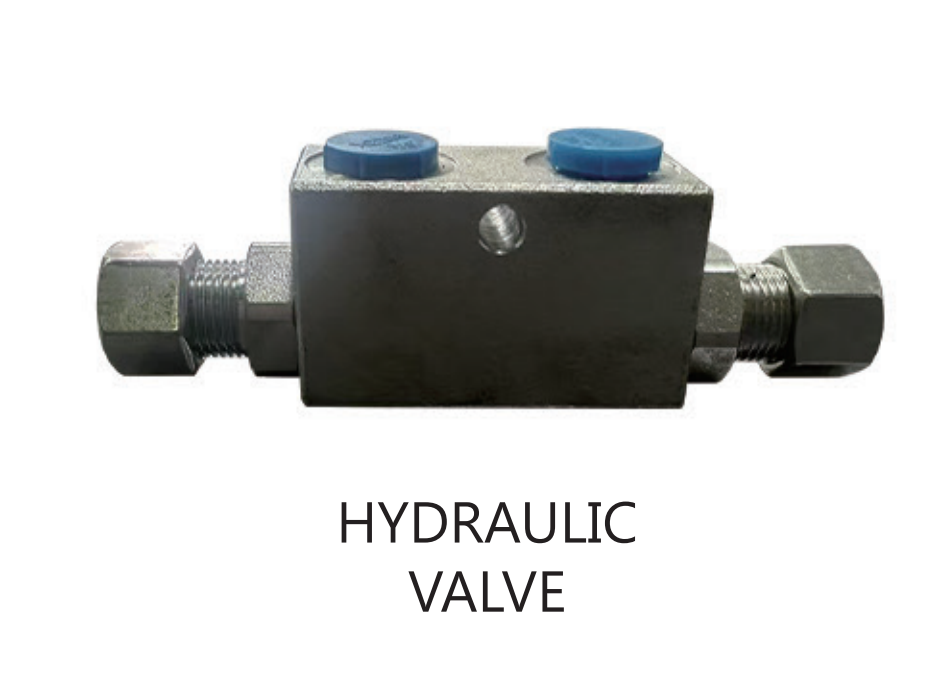

The flow rate of hydraulic oil is one of the important factors in controlling the speed of hydraulic cylinders. When the oil flow increases, the speed of the hydraulic cylinder will accelerate. Therefore, we can adjust the speed of the hydraulic cylinder by changing the oil flow rate. Specifically, the flow control valve controls its movement speed by regulating the flow of hydraulic oil entering the hydraulic cylinder. When it is necessary to increase the movement speed of the oil cylinder, the opening degree of the flow control valve can be appropriately increased to enhance the supply of hydraulic oil. Conversely, if the movement speed of the oil cylinder is to be slowed down, the opening degree of the flow control valve needs to be reduced to decrease the supply of hydraulic oil. In addition, the working condition of the hydraulic pump also affects the movement speed of the hydraulic cylinder. Ensuring the normal operation and stable performance of the hydraulic pump is the foundation for achieving speed regulation of the hydraulic cylinder.

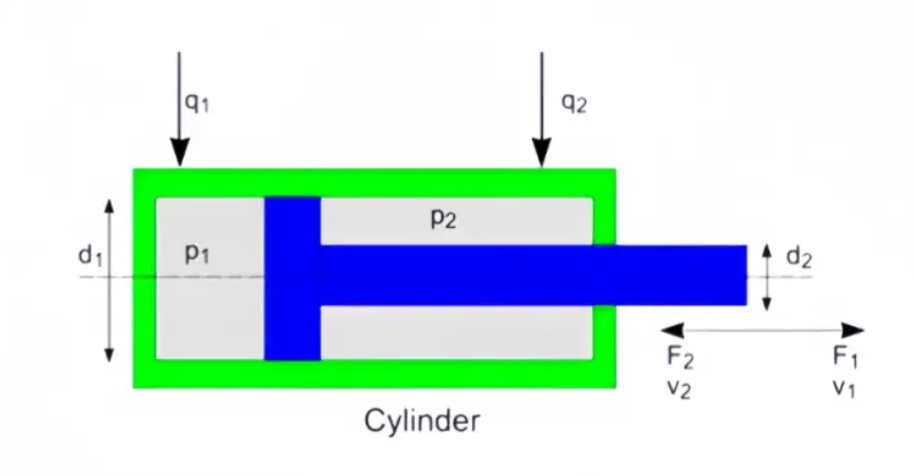

2.Adjust the area of the hydraulic cylinder

The area of the hydraulic cylinder is also a key factor in controlling its speed. The larger the effective working area of a hydraulic cylinder is, the slower its speed will be. Therefore, we can adjust the speed of the hydraulic cylinder by changing its area. The specific methods are:

Change the diameter of the piston. By changing the diameter of the piston, the working area of the hydraulic cylinder can be altered, thereby changing the speed of the hydraulic cylinder.

Change the stroke of the hydraulic cylinder. Changing the stroke of the hydraulic cylinder can alter the working area of the hydraulic cylinder, thereby regulating its speed.

In conclusion, the speed regulation of hydraulic cylinders is a comprehensive process that requires a thorough consideration of multiple aspects such as flow control, pressure control, and the working condition of the hydraulic pump. By precisely adjusting these elements, we can achieve precise control over the movement speed of the hydraulic cylinder, meeting the diverse demands in practical applications.
