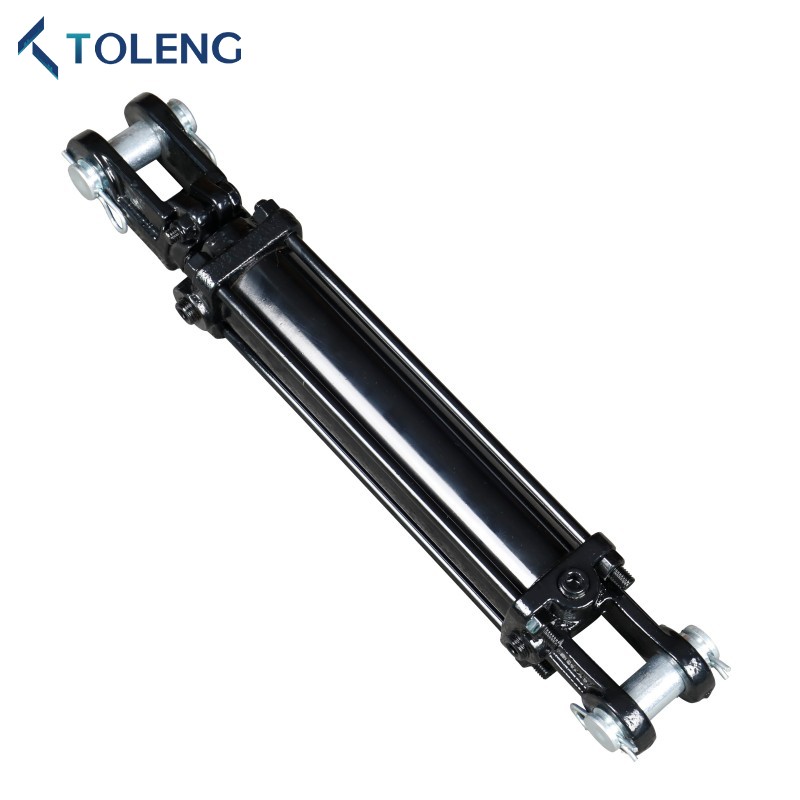

How to choose a tie-rod hydraulic cylinder?

The hydraulic cylinder is a common hydraulic transmission device, while a tie-rod hydraulic cylinder is widely used in industrial fields. The proper selection of a tie-rod hydraulic cylinder is crucial for enhancing operational efficiency and prolonging the service life of mechanical equipment. Here are some key factors to consider when making your choice.

1.Working pressure.

First, you need to confirm the working pressure required for the equipment. Tie-rod hydraulic cylinders are typically well-suited for medium and low pressure applications. Select the appropriate working pressure according to the load and movement speed to ensure stable operation of the cylinder.

2.Bore diameter and rod diameter

According to the load size and working pressure, calculate the required cylinder diameter and rod diameter. Ensure that the selected cylinder diameter and rod diameter can meet the actual requirements, while maintaining a reasonable size ratio.

3.Stroke Length.

When choose a stroke, you need to confirm the maximum stroke. Ensure the hydraulic cylinder provides enough stroke to meet the application’s needs.

4.Mounting type.

Tie-rod cylinders come with different mounting types such as flange, clevis, trunnion. Choosing an appropriate installation method takes into account the structure and operating environment of the equipment.

5.Temperature Range.

The working environment also has an important impact on the choice of tie-rod hydraulic cylinders. If the cylinder will operate in high or low temperatures, ensure that it is rated for those conditions.

In summary, the selection of tie-rod cylinders requires many aspects. Through reasonable selection, it can ensure the stable and efficient operation of the tie-rod hydraulic cylinder in the mechanical equipment, improve production efficiency, and extend the service life of the equipment.
